 Film Faced Plywood

1)Sizes: 1220X2440mm 1250 x 2500 mm 1830X4000mm 1500X3000mm 1525X3050mm 1830X5900mm
2)Thickness: 4mm-50mm (Other sizes and thickness values are also possible,as per customers' request.)
3)Length (width) tolerance: +1,0 mm -1,5 mm
4)Surface quality: film, smooth, wire mesh, hexagonal
5)Color of surface: Black, Brown and others on customers' request
6)Material of core: Poplar, birch, hardwood, combi
7)Film weight: 120 - 220 g/sq.m
8)Glue: Phenolic Resin, Melamine Glue, and Mix Glue.
9) Edges processing: Waterproof acrylic paint  Read More

film faced plywood

Bamboo Film Faced Plywood

1) Core: bamboo curtain and veneer
2) Glue: WBP, MR
3) Film (Coating): Brown, Black,bamboo woven mat
4) Surface: Smooth
5) Size: 1220x2440mm, 1250x2500mm, 1000x2000mm
6) Thickness: 5-30MM
7) Edge Treatment: Red, green or other color acrylic paint in order to against moisture  Read More

bamboo film faced plywood

H20 Beam

1) Beam Flange: Solid wood(80mmx40mm or as request)
2) Web: LVL board, plywood (27mm,28mm,30mm or others)
3) Glue: MUF waterproof glue
4) Bending: max.5 Kn/m
5) Length: 180 / 245 / 290 / 330 / 360 / 390 / 490 / 590cm
6) Weight: About 5 kg/m
7) Modulus of elasticity E: 11,000 N/mm2
8) Allowable deflection: l/500 (l = support width, meter)
9) Live load: 1.5 kN or 20% of concrete load.
10) Passed SGS test, under European Standard EN13377:2002  Read More

h20 beam

Three Ply Shuttering Plywood

1) Material: Fir/Abisia
2) Length: 970, 1000, 1500, 1970, 2000, 2500, 3000, 4000, 5000, 6000mm.
3) Thickness: 27mm, 21mm, Width: 500mm Glue: WBP (MUF) / E1.
4) Density: About 425Kgs/M3.
5) Sanding: Double faced sanded and Coated.
6) Packing: In Pallet Prepared for Forklift.
7) Moisture: less than 13%.  Read More

three ply shuttering plywood

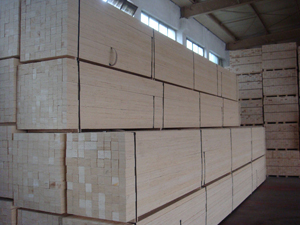

Laminated Veneer Lumber

Material: Radiata Pine

Quality: Top Grade/A Grade Inner

Dimension: 20-100mm x 100-1250mm x 1000-6000mm.

Glue: WBP glue (phenolic resin) Read More


Laminated Veneer Lumber

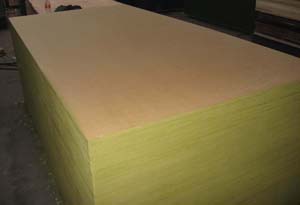

MDO-HDO Plywood

Veneer Board Surface Material´╝ÜBirch

Core:Poplar,birch,hardwood or pine,
Can be used construction,outdoor advertisement.

01) Made of phenolic resin film Dynea WBP glue
02) The film is imported from Finland company and Dynea company in yellow color
03) Weight: 220gsm
04) Glue:WBP glue . Read More


MDO-HDO Plywood
